Transax Manipulator
Cost effective modular 28mm bore dual bellows manipulator for vertical or horizontal mount. Modular XYZ Transax with NW40CF (70mm OD) conflat travelling flange, 28mm clear bore. Z travel, 150mm, 300mm, 450mm; ±25 mm XY travel. Manual and motorisation options available.
联系电话：
021-58997868
Dual bellows.
Three standard Z travel movement, 150mm, 300mm, 450mm
Travelling flange 70mm OD conflat
Motorisation option
32mm clear bore with full +/-25mm XY travel

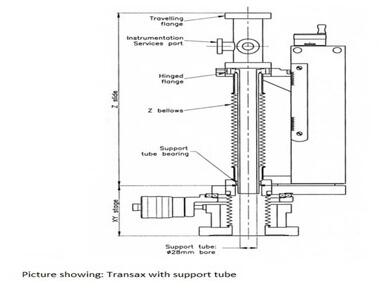

28mm clear bore with bellows support tube, supplied as standard.
Large load capacity
Bakeable to 230°C
Vertical or horizontal mount
Operating pressure 1 bar to 10-11 mbar
Leak rate 1x10-10 mbarl-s
